DPH-1 (18-28mm)
DPH-1 (18-28mm)

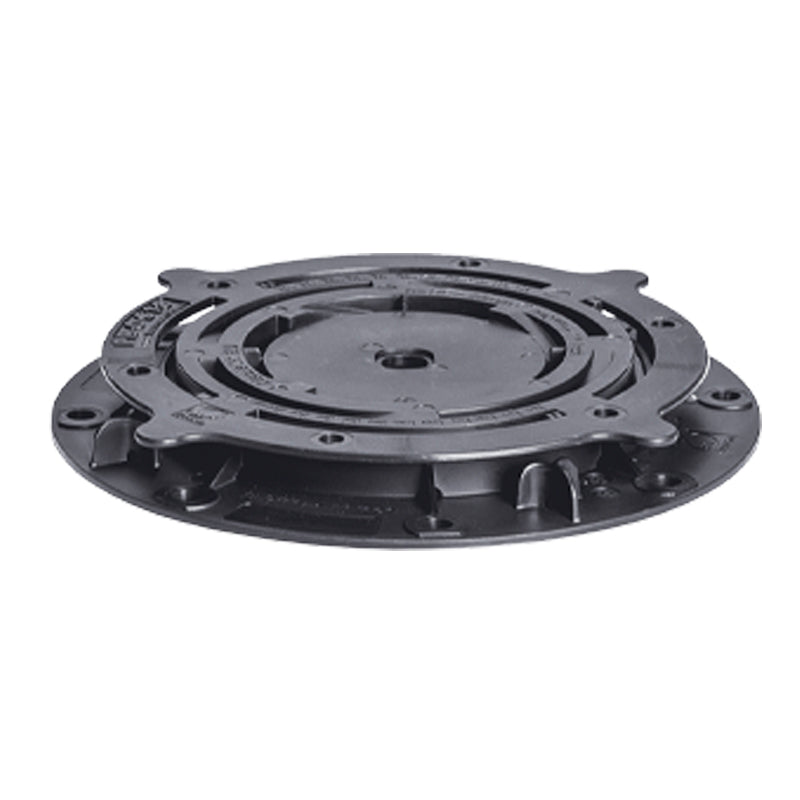

The Buzon DPH-1 is an adjustable pedestal in the DPH range that ranges in height between 18 - 28mm. The PH5 Slope Corrector and numerous fixing accessories are available to support all types of applications.
Dimensions
- Top diameter 145mm, surface area 165cm2
- Base diameter 170mm, surface area 227cm2
Characteristics
- Copolymer polypropylene (CPP)
- Composition: +/- 80% first grade pre-selected recycled CCP and +/- 20% Talc + UV Masterbatch black
- Material thickness 2 to 5mm
- 100% recyclable
- Resistant to aging, poor weather conditions, UV light, almost all chemicals, and rot proof
- Suitable for use in temperatures from -30°C to +80°C
