DPH-13 (830-1070mm)
DPH-13 (830-1070mm)

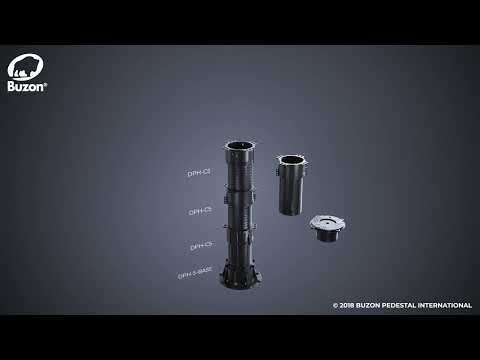

The Buzon DPH-13 is an adjustable pedestal in the DPH series that ranges between 830-1070mm with an integrated PH5 Slope Corrector. This height range is achieved by fitting four C5 Couplers between the head and the base of a DPH-5. Numerous fixing accessories are available to support all types of applications.
Dimensions
- Top diameter 155mm, surface area 188cm2
- Base diameter 200mm, surface area 314cm2
Characteristics
- Copolymer polypropylene (CPP)
- Composition: +/- 80% first grade pre-selected recycled CCP and +/- 20% Talc + UV Masterbatch black
- Material thickness 2 to 5mm
- 100% recyclable
- Resistant to aging, poor weather conditions, UV light, almost all chemicals, and rot proof
- Suitable for use in temperatures from -30°C to +80°C
